Overview: The fully automatic water softener is used for softening water quality. The principle is that the water softener is filled with ion exchange resin, and hard water is softened after being treated with ion exchange resin. As the water quality softens, the resin gradually saturates and fails. The failed resin is regenerated with table salt to restore its exchange capacity. The JNZ fully automatic water softener is equipped with a dedicated control valve and program controller, which automatically performs every step of the operation and regeneration process. Users do not need manual intervention, and only need to replenish the consumed salt every few days to automatically produce qualified softened water for a long time.

Regeneration control method:

    Timing method: Conduct a regeneration operation every certain interval of time. A typical example is to regenerate once a day. Quantitative method: Conduct a regeneration operation every time a certain amount of soft water is produced. Alternating operation mode: The system consists of two identical devices. When one device is in a regenerative state and cannot produce soft water, the other device operates.

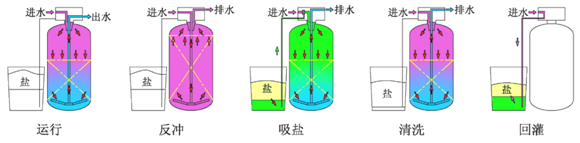

Working principle:

Equipment advantages:

● The key valve bodies and controllers on the equipment are selected from world-renowned brands such as GE and PENTAIR from the United States.

● High degree of automation, daily operation does not require manual operation except for adding salt.

● The effluent quality is stable, the equipment is reliable and durable, and maintenance is simple.

● The tank body is made of stainless steel or fiberglass, with strong corrosion resistance.

●  The equipment has a compact structure. Under the same processing capacity, the height and floor area of JNZ water softeners are significantly reduced compared to traditional equipment.

● The site requirements are simple and the pipeline connection is convenient.

Applicable scope:

    Industrial boiler supply water, circulating cooling water, high-quality domestic water, industrial production water for chemical, food, printing and dyeing, plastic processing, surface treatment, etc.

System composition:

    One set of equipment can be selected for the softening treatment of general water quality, using timed, quantitative, or alternating regeneration methods. For raw water with particularly high hardness, two sets of equipment can be selected to form a secondary softening treatment system. For raw water with high alkalinity and requiring dealkalization and softening treatment, this equipment can be used as a hydrogen exchanger or a sodium exchanger, respectively.

Equipment installation:

    The equipment can be placed on a sturdy and flat ground. Drainage outlets are required around the area. 220V power sockets need to be installed near the equipment. The inlet pressure of raw water shall not be less than 0.15MPa. If the water pressure is too low or the pressure is unstable, consider installing a Booster pump on the water inlet pipe.
